1. Introduction¶
ImageSynchronizer is an image dataset management project.
We strongly advise users use Jupyter Notebook to run the following examples, which can display pandas datasets information neater.
Installation¶
Download the package from this link
Install by the following command:
Windows :
python setup.py ImageSynchronizer-x.x.x-py3-none-any.whlLinux :
sudo python3 setup.py ImageSynchronizer-x.x.x-py3-none-any.whl

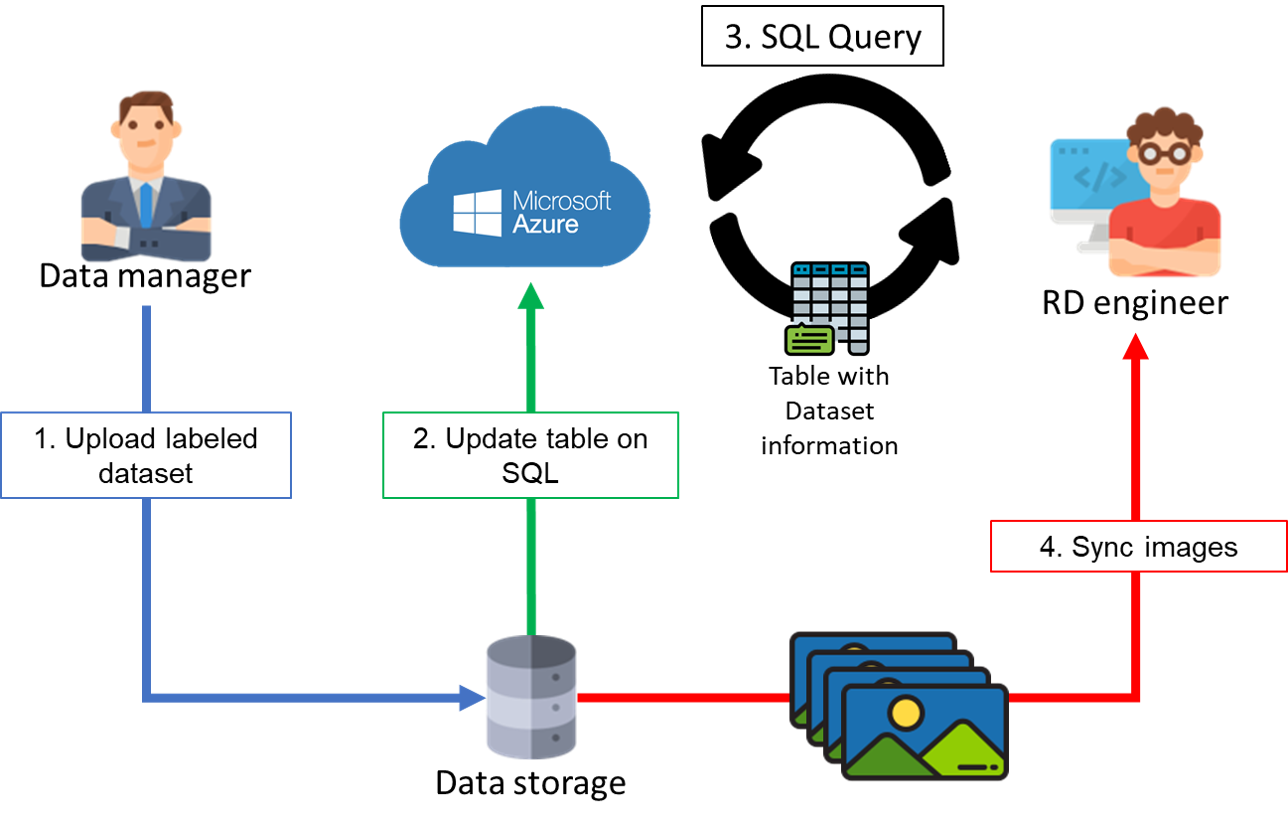

How ImageSynchronizer work?¶
2. How is dataset named?¶
Dataset name format :¶
source_name_imtype_labeltype¶
source : Data set source
- Original : This dataset is original which is taken by manager.
- Opensource : This dataset is opensource and comes from internet.
name : Data set release date or open dataset name
- Original dataset : The date that dataset uploaded to ImageSynchronizer databse.
- Opensource dataset : The dataset name.
imtype : Image type
- The image type of this dataset, it might be one of the following :
- rgb, dvs, fisheye, dewarp
labeltype : Labeling type
- bbox : Normal bounding box
- seg : Semantic segmentation
- clf : Classification
- rbbox : Rotated bounding box (bounding box with angle)
- poly : Polygon
- reg : Regression
Example : opensource_widerface_rgb_bbox¶
※ Each labeling type has its own json annotation format.
3. Usage¶
1. Connect to SQL database and image storage¶
from ImageSynchronizer import ImageSynchronizer
server = "serverurl" # for example of MS Azure : "xxxxxx.database.windows.net"
database = "dbname" # name of database
username = "username"
password = "password"
sync = ImageSynchronizer.synchronizer(server, database, username)
2. Datasets information¶
After SQL database connected, datasetsInfo attributes will list the details of available datasets.
- datasetID : Names of dataset
- version : The labeling standard. For example, version 1.0.0 means bounding box only contains 'person' category, but after discussion, the new label standard becomes 'person with face' and 'person without face' categories, which is version 2.0.0.
- image_type : What kind of image in this dataset
# Show the detail of all available dataset
sync.datasetsInfo
3. Make subscription with specific condition¶
# Define a susbscription condition and get the dataset ID
datasets = sync.datasetsInfo[sync.datasetsInfo['image_type']=='fisheye360']['datasetID']
# Only subscript original dataset
datasets = [i for i in datasets if 'opensource' not in i]
# Make a subscription request
sync.subscribe(datasets=datasets)
# Show the dataset detail of your subscription
sync.datasetsInfo_subscribed
4. Sync dataset to target folder¶
# After a subscription has been made, synchronization can be proceed on a target folder.
sync.update_subscription(target_path = "./test")
# This procesdure may take few hours, depends on the internet speed and dataset size.
# Note : This function only sync those image that not included in target_path..
# You can also specify the amount of image to subscript incase the dataset is too large
sync.update_subscription(target_path = "./test", amount = 50)
5. Use custom draw_box function preview dataset with label¶
from ImageSynchronizer.utils import draw_box
import glob
import numpy as np
import matplotlib.pyplot as plt
anno_list = glob.glob(r"test/**/*.json")
rdn_anno = np.random.choice(anno_list,1)[0]
img = draw_box(rdn_anno)
plt.figure(figsize = (10,10))
plt.imshow(img[...,::-1])
4. Annotation format introduction¶
ImageSynchronizer has a standard annotation format saved as json file :
- anno_version : annotation format version of ImageSynchronizer
- label_checked : whether this label file checked by manager or not (1 is checked, 0 is not)
- height : height of image corresponding to this label file
- width : width of image corresponding to this label file
- depth : depth(channels) of image corresponding to this label file
- ext : filename extension of image corresponding to this label file
- labels : label image corresponding to this label file, it could be multiple label contains in a list
Lets take a look at an example with multi-attribute label type:
{
$~$$~$"anno_version":$~$"0.2.0",
$~$$~$"label_checked":$~$1,
$~$$~$"height":$~$264,
$~$$~$"width":$~$263,
$~$$~$"depth":$~$3,
$~$$~$"ext":$~$"jpg",
$~$$~$"labels":$~$[
$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$"label_type":$~$"clf",
$~$$~$$~$$~$$~$$~$"label_name":$~$"Gender",
$~$$~$$~$$~$$~$$~$"label":$~$"Female"
$~$$~$$~$$~$},
$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$"label_type":$~$"clf",
$~$$~$$~$$~$$~$$~$"label_name":$~$"Emotion",
$~$$~$$~$$~$$~$$~$"label":$~$"Happiness"
$~$$~$$~$$~$},
$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$"label_type":$~$"reg",
$~$$~$$~$$~$$~$$~$"label_name":$~$"Age",
$~$$~$$~$$~$$~$$~$"label":$~$42
$~$$~$$~$$~$}
$~$$~$]
}
This annotation file corresponding to an image with shape (264, 264, 3), and this image has three different label :
- Age : A regression attribute, which value is 42
- Gender : A classification attribute, which value is "Female"
- Emotion : A classification attribute, which value is "Happiness"
Lets take a look at another example with 'bbox' label type:
{
$~$$~$"anno_version"$~$: "0.2.0",
$~$$~$"label_checked"$~$: 1,
$~$$~$"height"$~$: 300,
$~$$~$"width"$~$: 300,
$~$$~$"depth"$~$: 3,
$~$$~$"ext"$~$: "jpg",
$~$$~$"labels"$~$: [
$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$"label_type"$~$: "bbox",
$~$$~$$~$$~$$~$$~$"object"$~$: [
$~$$~$$~$$~$$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"class"$~$: "person",
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"x1"$~$: 25.367088607594937,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"y1"$~$: 182.74683544303798,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"x2"$~$: 42.79746835443038,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"y2"$~$: 200.31645569620252
$~$$~$$~$$~$$~$$~$$~$$~$},
$~$$~$$~$$~$$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$ "class"$~$: "person",
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"x1"$~$: 88.0506329113924,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"y1"$~$: 58.0,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"x2"$~$: 128.0506329113924,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"y2"$~$: 100.0
$~$$~$$~$$~$$~$$~$$~$$~$}
$~$$~$$~$$~$$~$$~$]
$~$$~$$~$$~$}
$~$$~$]
}
This annotation file corresponding to an image with shape (300, 300, 3), and this image is for object detection training:
- bbox : bounding box coordinate and class
- (x1, y1) : lefttop coordinate
- (x2, y2) : rightbutton coordinate
Lets take a look at the last one example with 'rbbox' label type:
{
$~$$~$"anno_version" :$~$"0.2.0",
$~$$~$"label_checked" :$~$1,
$~$$~$"height" :$~$2880,
$~$$~$"width" :$~$2880,
$~$$~$"depth" :$~$3,
$~$$~$"ext" :$~$"jpg",
$~$$~$"labels" :$~$[
$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$"label_type"$~$:$~$"rbbox",
$~$$~$$~$$~$$~$$~$"object" :$~$[
$~$$~$$~$$~$$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"class" :$~$"person",
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"x" :$~$1433.5394,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"y" :$~$1151.9007,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"w" :$~$206.441,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"h" :$~$383.9458,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"a" :$~$1.548375
$~$$~$$~$$~$$~$$~$$~$$~$},
$~$$~$$~$$~$$~$$~$$~$$~${
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"class" :$~$"person",
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"x" :$~$1921.1333,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"y" :$~$1115.2,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"w" :$~$472.2526,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"h" :$~$317.7133,
$~$$~$$~$$~$$~$$~$$~$$~$$~$$~$"a" :$~$2.547793
$~$$~$$~$$~$$~$$~$$~$$~$}
$~$$~$$~$$~$$~$$~$]
$~$$~$$~$$~$}
$~$$~$]
}
This annotation file corresponding to an image with shape (2880, 2880, 3), this one is a fisheye image:
- rbbox : rotated bounding box coordinate and class
- x : rotated bounding box x-axis center, equivalent to (x1+x2)/2
- y : rotated bounding box y-axis center, equivalent to (y1+y2)/2
- w : rotated bounding box width, equivalent to abs(x1-x2)
- h : rotated bounding box height, equivalent to abs(y1-y2)
- a : rotated bounding box angle, the angle base (0 degree) is point to 12 clock position.
5. Annotation format operation¶
ImageSynchronizer has its own annotation format for each labeling types save in json file.
Users can convert ImageSynchronizer json annotation format into the following annotation format :
labelme_json for labelme :
All ImageSynchronizer original annotaion files will be move into a folder named ImageSynchronizer_annotation , and the labelme annotaion will be generated and replace the original annotation files.
- rbbox objects convert to labelme_json will be saved as polygon type.
- bbox objects convert to labelme_json will be saved as rectangle type.
rolabelme_xml for roLabelImg :
A xml annotation file will be generated as the same as the original annotation file name.
# Batch convert ImageSynchronizer_json to rolabelimg_xml
from ImageSynchronizer.parse_annotation import parse_annotation
from IPython.display import display
import glob
anno_dir = "./test/original_20200207_fisheye_rbbox/*.json"
anno_list = glob.glob(anno_dir)
rdn_anno = np.random.choice(anno_list,1)[0]
parser = parse_annotation(rdn_anno)
display(parser.objects_df) # Dataframe of all bounding boxes
parser.convert('rolabelimg_xml')
